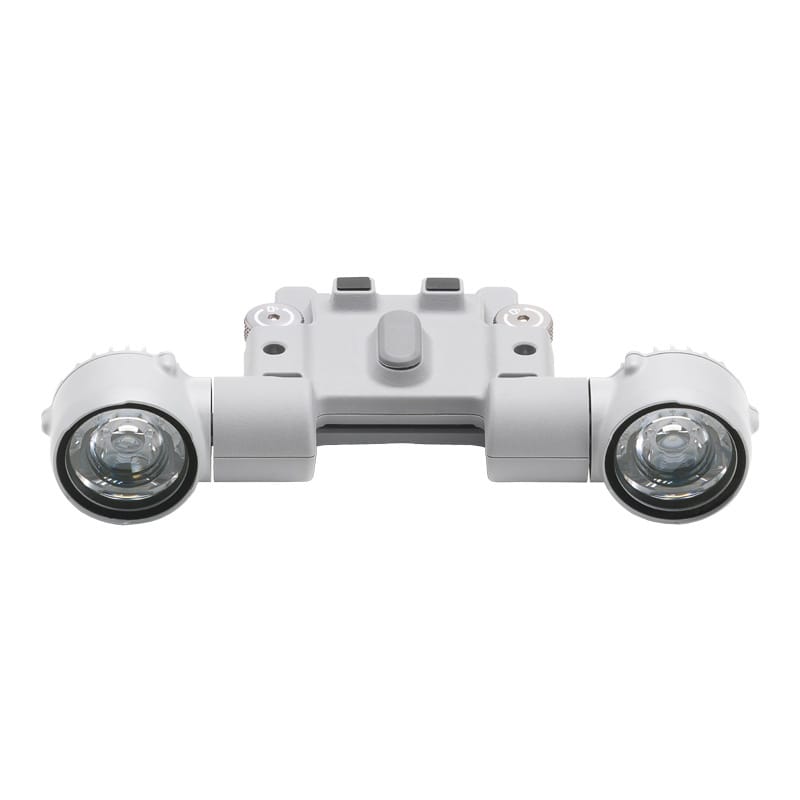

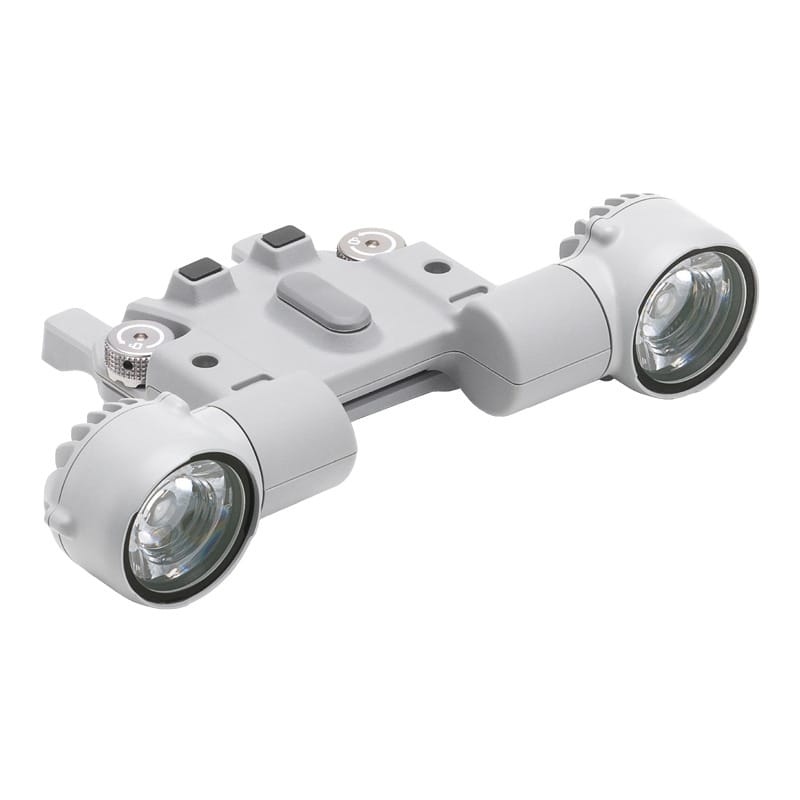

AL1 lighting for DJI Matrice 4

The DJI AL1 light can illuminate objects up to 100 meters away and has two modes: Always-On and Strobe. It can connect to a gimbal, allowing it to track the camera’s movements to ensure the area is lit according to the camera’s view. The AS1 light and speaker can be used independently or in combination (stacked on top of each other) to meet the needs of more operational scenarios.

Contents of the set:

1x AL1 lighting

€301.76 z VAT

Weight	99 g (including handle) Approximately 91 g (without handle)
Dimensions	95×164×30 mm (L×W×H, with handle) 79×164×28 mm (L×W×H, without handle)
Maximum power	32 W
Light intensity	4.3±0.2 lux @ 100 meters, 17±0.2 lux @ 50 meters
Effective illumination angle	23° (10% relative illumination)
Effective lighting area	1,300 square meters at 100 meters (10% relative illumination, normal mode) 2,200 square meters at 100 meters (10% central illumination, wide field of view mode)
Operating mode	Supports constant lighting and strobe modes
Gimbal working range	from -140° to 50° on the tilt axis
Controllable range	from -90° to 35° on the tilt axis
Maximum control speed (Tilt axis)	120°/s
Gimbal alignment accuracy	±0.1°
Operating temperature	-20°C to 50°C
Installation	Manually using a mounting bracket with screws
Compatibility	DJI Matrice 4E/4T, DJI Matrice 4D/4TD
